TRIGLA - PLASTIC RECYCLING MACHINERY PLANT



AGGLOMERATORS

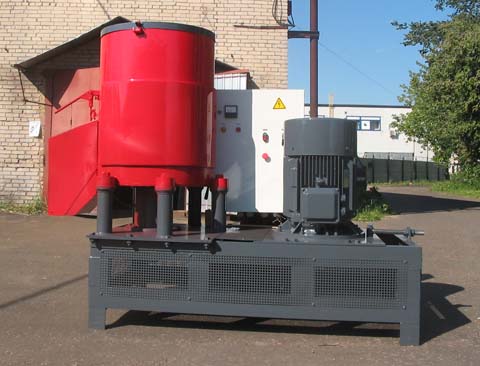

AGGLOMERATOR AGM-55. TRIGLA, Russia.

We produce the AGM-series agglomerators:

TRIGLA: Agglomerator AGM-15 TRIGLA: Agglomerator AGM-30 TRIGLA: Agglomerator AGM-55 TRIGLA: Agglomerator AGM-55x2
Capacity, kg/h
film 80-200mk 50-70 100-120 200-230 230-300
film < 80mk 40-50 70-100 170-200 200-260
Drive power, kWt 15 30 55 55
Knives 4 6 8 10
Rotor speed,rpm 1500 1500 2000 1500
Rotor diameter, mm 510 510 700 ***
Usage PP, PELD and
PEHD films
bags and films
PP, PELD, PEHD
bags and films
PP, PELD, PEHD
bags and films
PP, PELD, PEHD
Weight, kg 600 720 1200 1800
Dimentions (LõWõH), m 1,4õ0,65õ1,25 2,2õ1,0õ1,7 ***

Features of AGM-series agglomerators

Special design of knives and rotors allows agglomerators of AGM-series to provide higher capacity and quality of agglomerate.

One of important parts of the design is SKF-bearing system. We pay special attention to it preventing overheating of bearing system during the work.

In addition, we dedicate a lot of resources to safety of work on our agglomerators and electrical safety of our control cabinets. Safety class of our control cabinets is IP-65.

Benefits of AGM-15, AGM-30 and AMG-55

  • Flexibility (may agglomerate not only PE but also PP and PA)
  • Higher capacity
  • Cooled bearing system (AGM-15 and AGM-30)
  • Heat-preventing isolated bearing system (AGM-55)
  • SKF-bearings
  • Heat isolated body, ventilation as an option
  • Rotor reverse - two sided knives - dubles lifetime
  • Enhanced pulley diameter - lowers belts wear-out and stabilizes work
  • Simplicity, dependability and friendliness of design, work and service
  • Cost effectiveness
  • Higher quality of agglomerate
  • Special rotor and knives design for higher capasity (AGM-55)
  • Soft start of motor (AGM-55)
  • Safety
  • 1 year guarantee
  • We are happy to hear any customer's opinion about our machines and give you a guarantee that all your recommendations will be analized by our engineers.
    This way we produce what you need.
